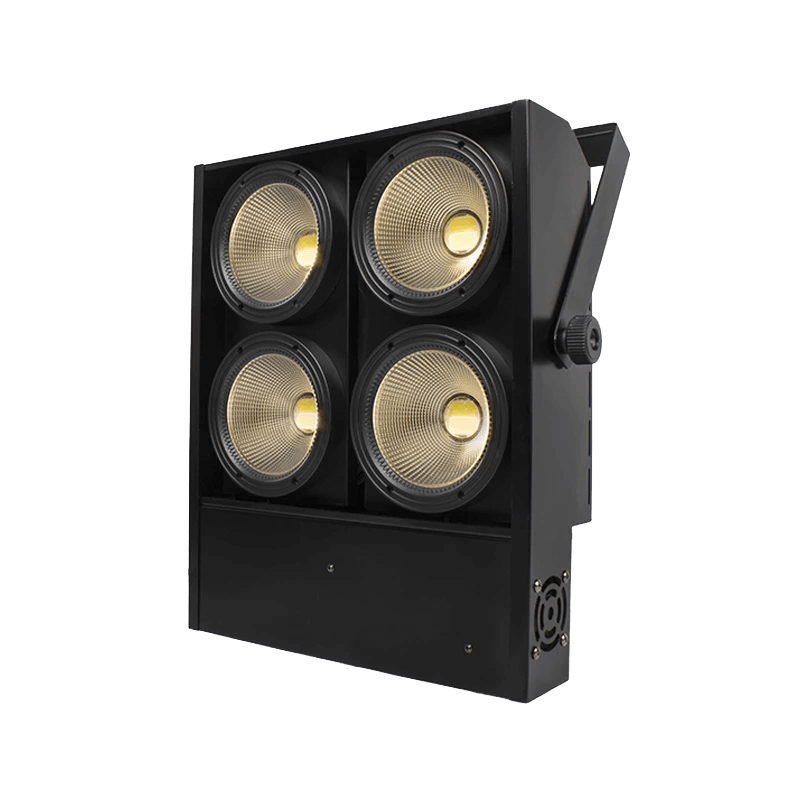

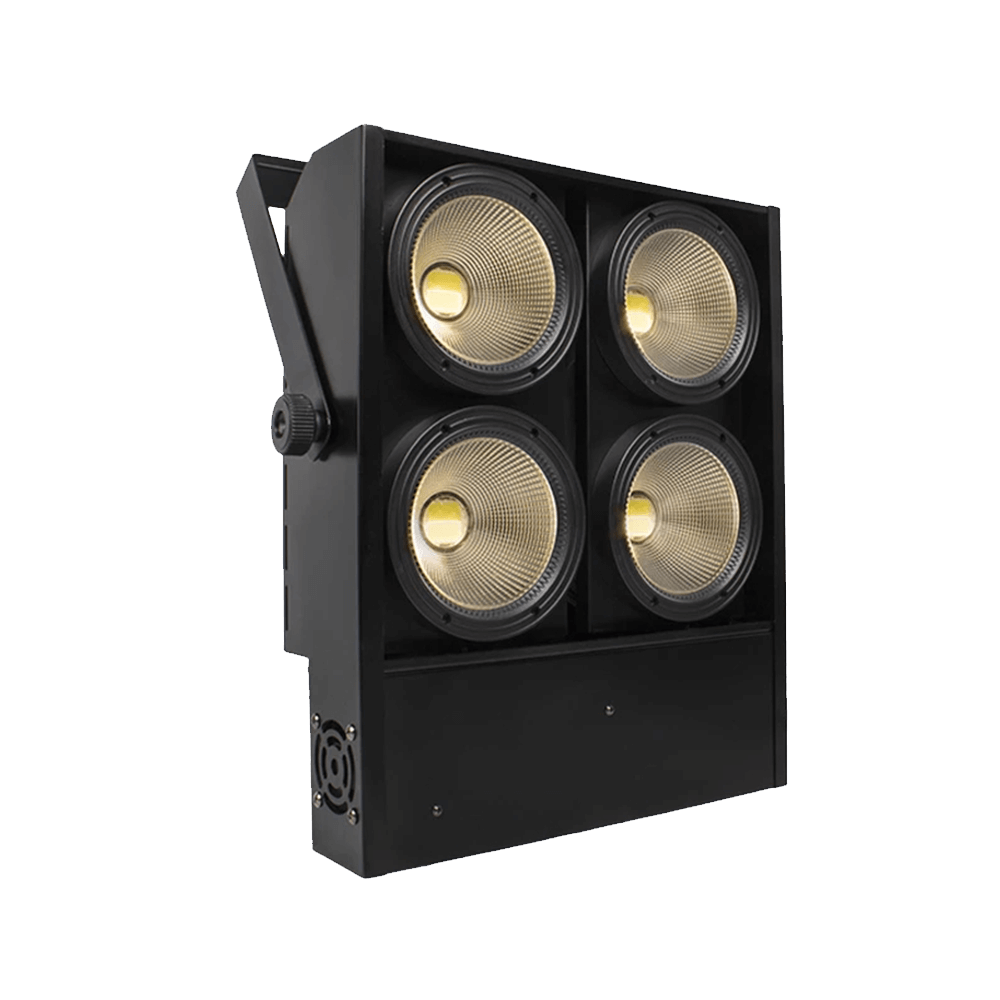

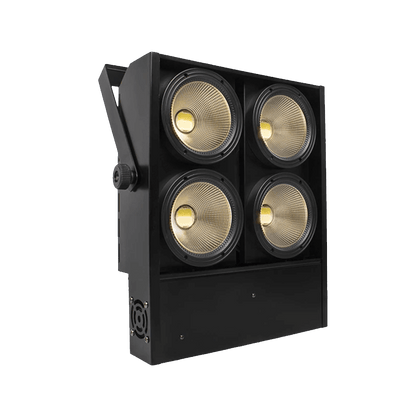

Product Introduction
1. Light Source: 4x100W COB LED
2. AC Power: AC100-240V，50-60HZ
3. Maximum total Power Consumption: 400W
4. Beam Angle: 60-75 degree
5. Operational Modes: DMX512, Auto Run, Sound action, Master/Slave
6. Irradiation distance: 10m
7. Strobe effect: Variable speed (1-30Hz)
8. Body Color: Black
9. Housing Material: Metal
10. Life Span: 60,000 hours

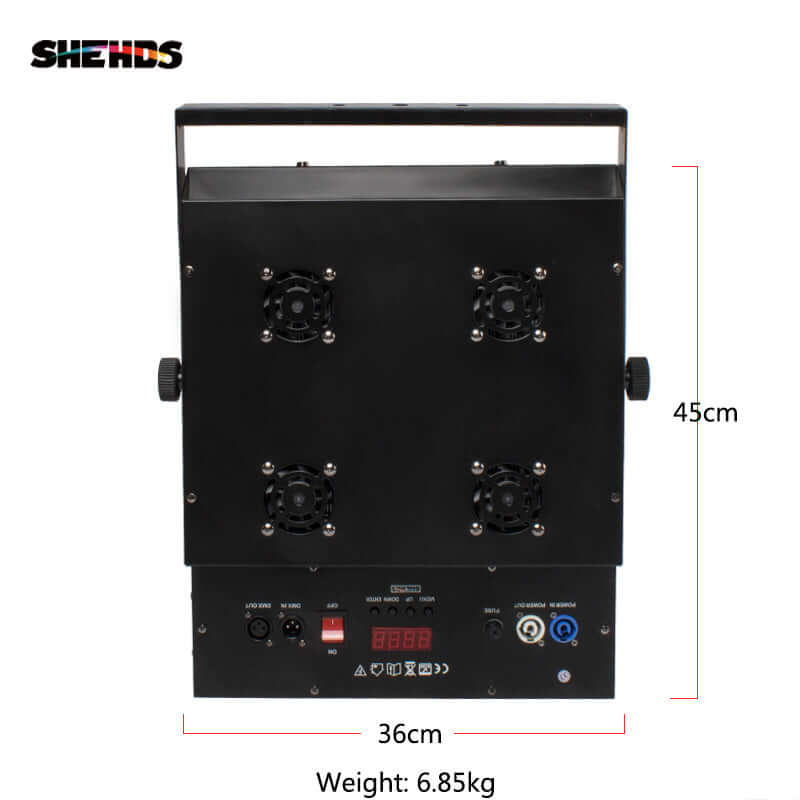

11. Net Weight: 6.3kg
12. Product Size: 36x12.2x37.6cm
User’Manual：400W COB Warm White Light
User’Manual：400W COB Cool White Light
User’Manual：400W COB Warm+Cool White Light
Library File: https://drive.google.com/drive/folders/1VwWAyHkMalLyKwJyul9O_BV-RMVwpw6R?usp=sharing
Technical Parameter
Technical Parameter
Power Supply：
280W-36+12v
Input Voltage Range：
AC:100-240V, 50/60Hz
Light Source Type:
120W
CRI :
RGBLAC: L/34.5RGBLAC/84 & RGBWA+UV: W / 70
CTO / Colour Temperature：
RGBLAC: L/4320K RGBLAC/20800 K & RGBWA+UV:W/6892K
Illuminance（1meter）：
RGBLAC:22000 Lux & RGBWA+UV:12200 Lux
Beam Size（1meter）：
38cm
DMX Channel：
6 / 10 CH
Product Size：
194×229×289mm
Product Weight：
3.45 kg
Package Size：
28.5×23.5×30.5cm
Shipping Package Size：
28.5×23.5×30.5cm
Package Weight：
5.5 kg
Operating Temperature ：
-20~45°C
Waterproof ：
IP66
Noise：
37dB~54dB
Seamless Chase · IP66 · Full APP Control
Smart APP control for color, strobe, effects & more, no console needed
Influencer use effect
Preset Programs
Instant effects without controller
APP interface display
The operation interface is simple and easy to use
Specifications
Seamless Splicing
Tool-Free Assembly, One-Person Matrix Setup
IP66 · All-Weather Ready
Rainproof, Dustproof, Moisture-Proof, Frost-Proof
Smooth Wash Effect
Even color output with no hotspots
Color Display
7x18W Waterproof LED Par Light
Smooth Linear Dimming
Flicker-free 0–100% dimming performance
Long Lifespan LEDs
Up to 20,000 hours of reliable performance
Flexible Control Modes
Wireless WiFi, DMX, Auto, Sound, & Master-Slave
One Light Endless Applications
Stage, DJ, Festival & Event Ready
Technical Parameter
Product Weight: 3.45kg /7.61lb
Product Size:194x229x289mm
Sphere PC Diffuser
360° Spherical Light Output Creates a smooth globe-shaped illumination visible from every angle.
Cylinder PC Diffuser
Striking Pillar of Light Transforms ordinary lighting into a bold illuminated column.
Barn Door
Light Under Control Precise Shaping, Effortless Direction
3 Flexible Splicing Ways
Easy splicing installation for any scenario
Details Display
Close up. Control. Connect.
Die-Cast Aluminum
Smart & Silent Cooling

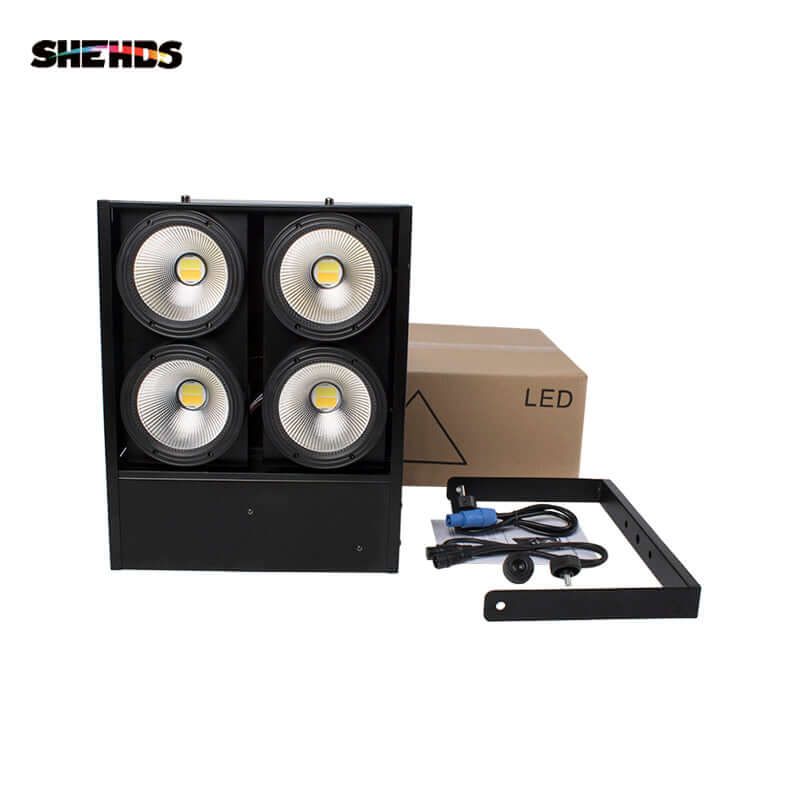

Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
